The Solution – Cascade Protection Network
The Optimal SineTamer® Protection Network consists of installing various types of protection units, strategically located at specific points where the critical equipment is located. These are known as levels 1 and 2, where an equipment failure can be lethal!
LA & RM Units
Features:-
- The LA and the RM units ( 3 phase ) are – frequency attenuation – internally current and thermally fused – UL94V
- The LA is a true 10 mode device, while the RM is a seven mode unit.
- Various options are available and various peak surge currents.
- The LA-ST Family & RM-ST Series are both a versatile and effective surge protective device (SPD) designed especially for cost sensitive applications.
- These SPDs are intended for sensitive and critical load applications at service entrances, branch panels, control panels, and individual equipment disconnects.
- They are effective at mitigating externally generated high-energy impulses and internally generated transient voltage events.
LA-ST Protection Styles
- Ten (10) (10-mode device considering a 3-phase WYE power supply)
- Six (6) (6-mode device considering a 3-phase DELTA power supply)
- Five (5) (5-mode device considering a Split phase –2 L+N+G)
- Three (3) (3-mode device considering a 1 phase power supply –1 L-N-G)
RM-ST Protection Styles
- Seven (7) (7-mode device considering a 3-phase WYE power supply)
- Six (6) (6-mode device considering a 3-phase DELTA power supply)
SineTamer Advantage Units
True 10 mode dedicated components
- UL94V Composite enclosures
- Component Level Thermal Fusing
- Patented Board Level Current Fusing
- Disconnect Options
- DRC Options
- Surge Counter options
- Frequency Attenuation Network models
Frequency Attenuation
- ST-CSLx: 90 ka per phase
- ST-CKLx: 120 ka per phase
- ST-CSEx: 240 ka per phase
- ST-CMLx: 300 ka per phase
Non-Frequency Attenuation
- ST-SSLx: 90 ka per phase
- ST-SKLx: 120 ka per phase
- ST-SDLx: 180 ka per phase
- ST-LSEx: 240 ka per phase
- ST-SMLx: 300 ka per phase
- ST-SILxM: 360 ka per phase
- ST-SHLxM: 480 ka per phase
- ST-SHDLxM: 600 ka per phase
- ST-SMDLxM: 720 ka per phase
- ST-SXDLxM: 900 ka per phase

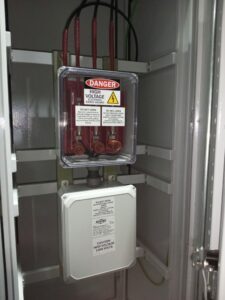

Medium Voltage Units
- ST-CMV-AC Announcing the Latest Technology in Medium Voltage surge suppression!
- Smaller Enclosure, Economical Fusing and Longer Warranty!
Individual Circuit Units
- The SineTamer ST-SPT devices ( Single Phase ) provide the best ring wave transient protection available for a device of its type.
- These devices are intended for single 120, 240, 380 or 480 VAC circuit applications at locations feeding sensitive/critical equipment.
- It is extremely effective in limiting transients generated inside the facility and is an absolute must on circuits feeding critical microprocessor based equipment.
- It boasts a robust 120kA per phase peak surge current rating on all models.
- This device is unique in that it is designed as a stand-alone surge suppression device and requires no special enclosure when used outside an existing enclosure or cabinet.
- Its compact size makes installation a breeze and the warranty is the best in the industry.
- Add to that, dedicated “all mode” Frequency Attenuation Network and completely encapsulated Optimal Response Network, and you get a device that defines effective and reliable surge suppression.
